🪄 AI Layout Generation

AI Layout allows you to transform a text prompt into a fully structured widget hierarchy. Instead of manually dragging and dropping individual components, you can describe the goal of a screen, and Artok Studio will generate the containers, labels, and interactive elements automatically.

🚀 Generating a New Layout​

To trigger the layout engine, use the AI Layout tool located in the top navigation bar.

1. The Prompting Process​

When prompted, describe your interface needs in natural language. The AI understands industrial, automotive, and consumer electronic contexts.

  • Example 1: "Create a vertical sidebar with four navigation buttons for Home, Settings, Logs, and Power."
  • Example 2: "Design a centered circular gauge for temperature monitoring with a title label above it."

2. Automatic Hierarchy Construction​

Once generated, the AI doesn't just place loose widgets; it builds a logical Hierarchy.

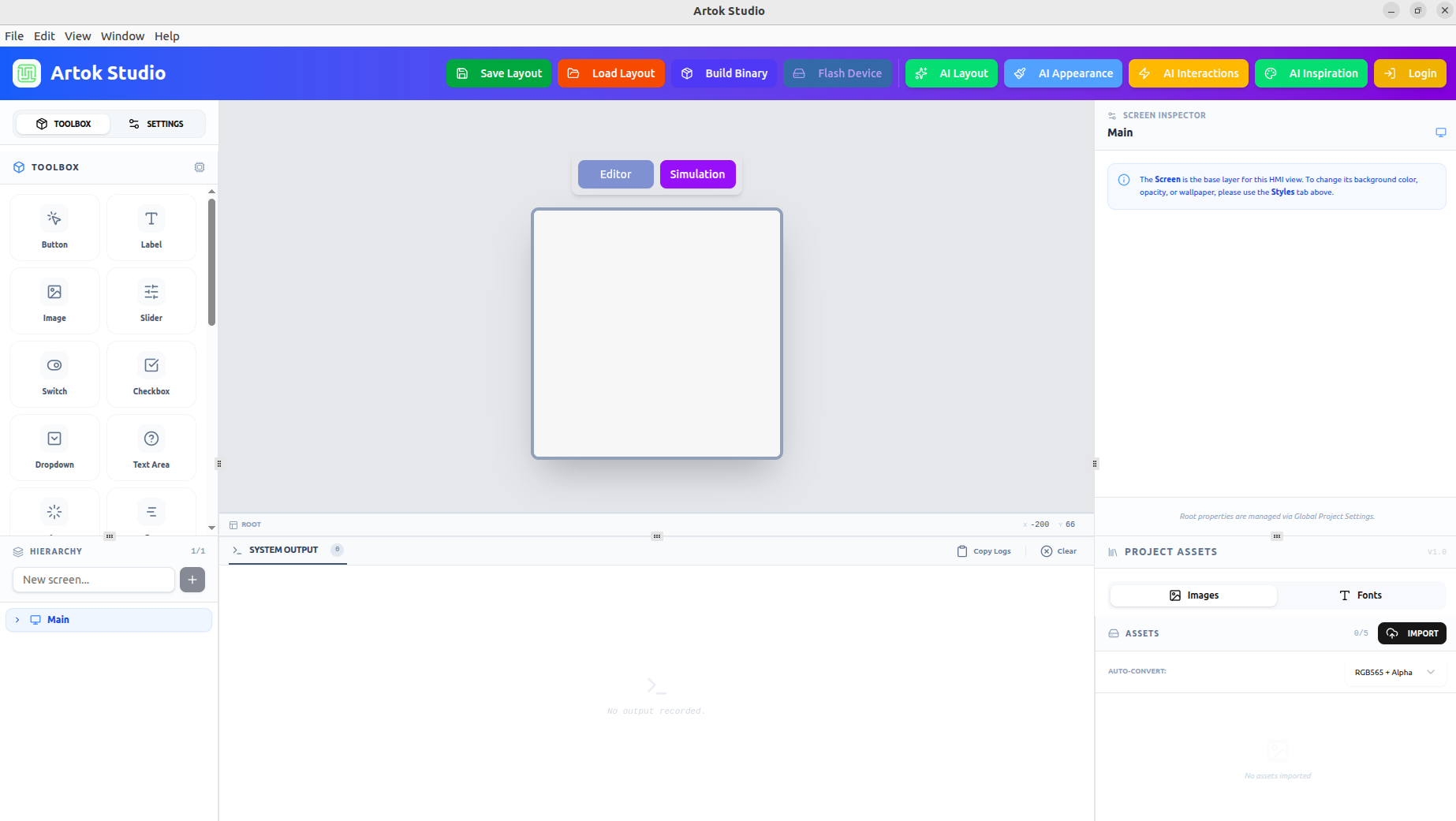

Artok Workspace Overview Figure 1: The AI generates structured layouts that appear immediately in the Hierarchy panel.

🏗 Why Use AI Layout?​

For embedded systems, layout organization is critical for performance and maintainability. AI Layout follows best practices:

  • Containerization: The AI automatically groups related items into containers. This makes the UI easier to move or hide as a single unit.
  • Proportional Spacing: It calculates padding and alignment based on your Target Hardware resolution.
  • Semantic Naming: Widgets are given logical Instance Names (e.g., gauge_temp instead of gauge_1), which saves time during Logic and Events configuration.

🔄 Refining the Output​

AI Layout is intended to be a "high-speed starting point." Once the layout is generated, you can:

  1. Fine-tune Geometry: Use the Property Inspector to tweak exact pixel positions.
  2. Apply Brand Styles: Use AI Appearance to skin the generated layout with your specific colors and textures.
  3. Attach Events: Open the Events tab to link the new widgets to hardware triggers.
COMBINING TOOLS

A professional workflow involves using AI Layout to build the structure first, then using AI Appearance to style the elements, and finally AI Interactions to write the code.

Next Steps​

Once your layout is structured, define the look and feel:
